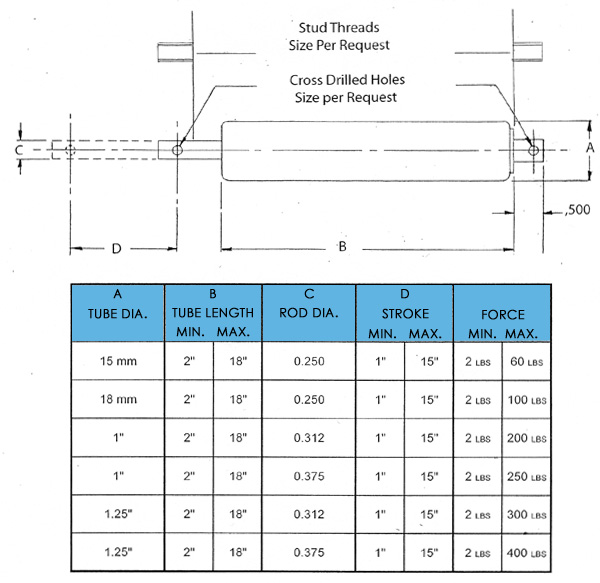

Product Specifications

Back to Products page

Extended Shaft Cylinder

Retracted Shaft Cylinder

F2 to F1  =  Force on extension
F3 to F4  =  Force on compression

A coil spring is placed between the piston and the bottom of the tube.  The unit is filled with oil and sealed.  Metered and timed extension and forces are achieved through fixed or adjustable piston orifices and selected coil spring forces.

F2 to F1  =  Force on retraction
F3 to F4  =  Force on extension

A coil spring is placed between the front of the tube and the piston.  The unit is filled with oil and sealed.  Metered and timed retraction and forces are achieved through fixed or adjustable piston orifices and selected coil spring forces.
